Rhinoceros XN12-9 Mini Excavator (Swing Boom and Extension Tracks)
£11,100.00

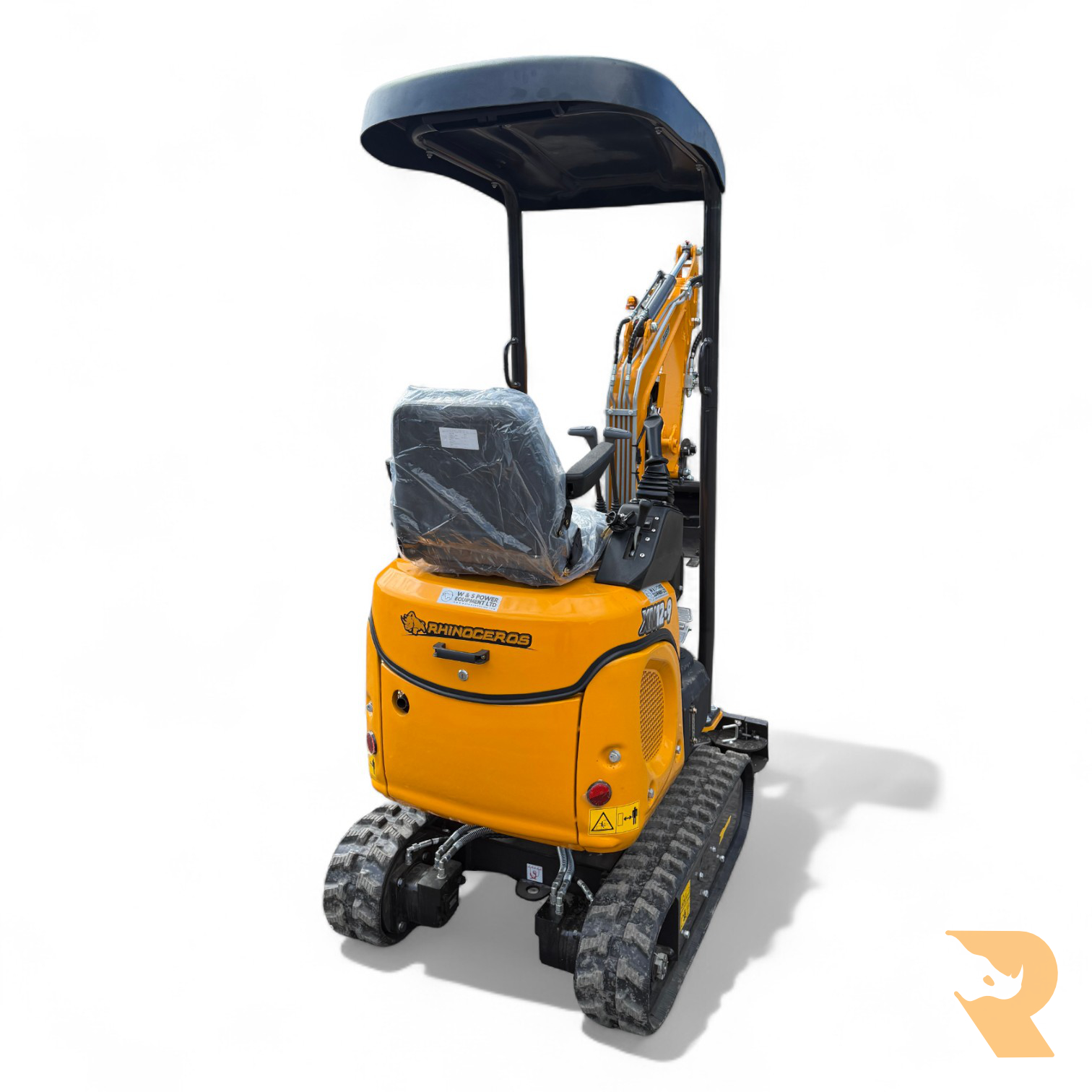

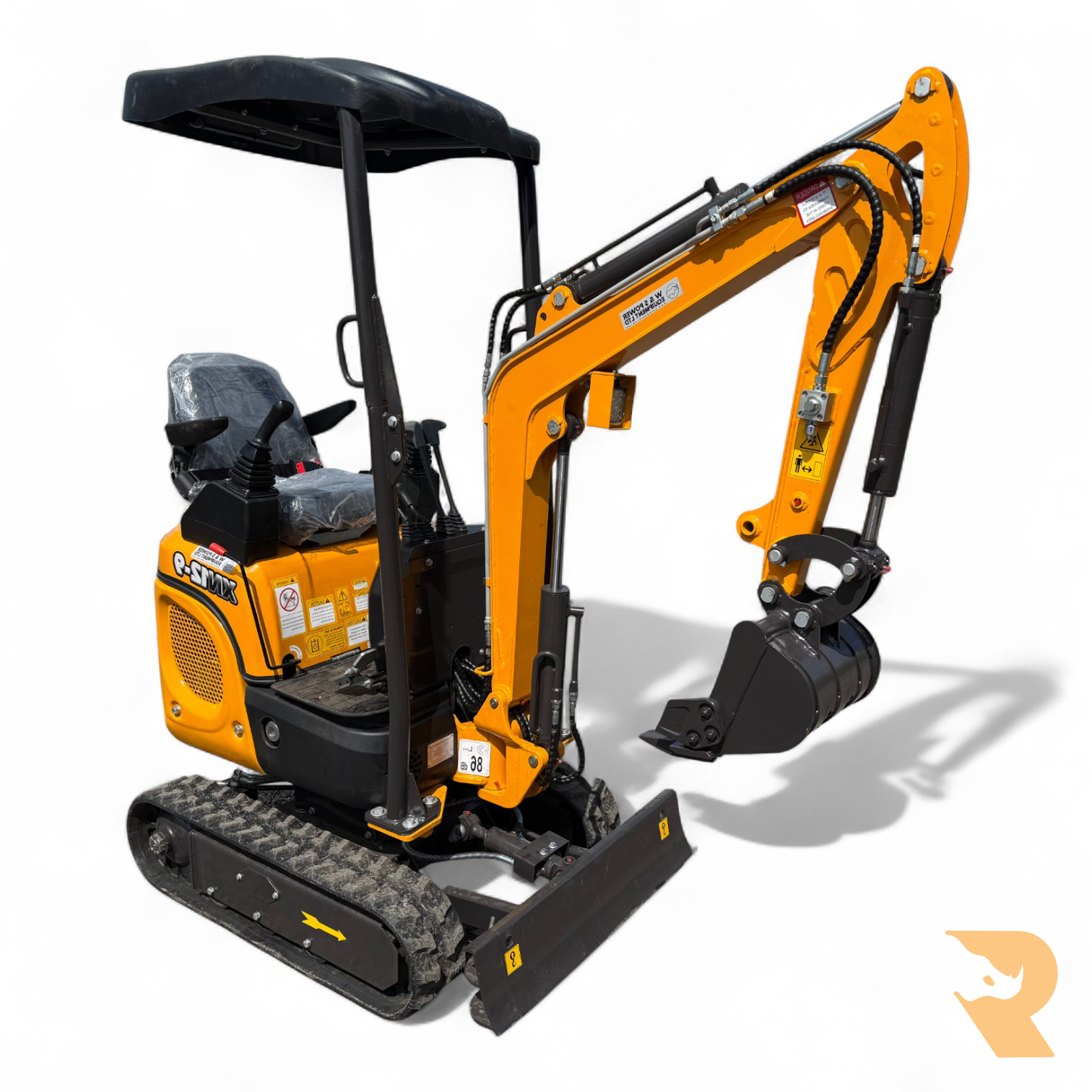

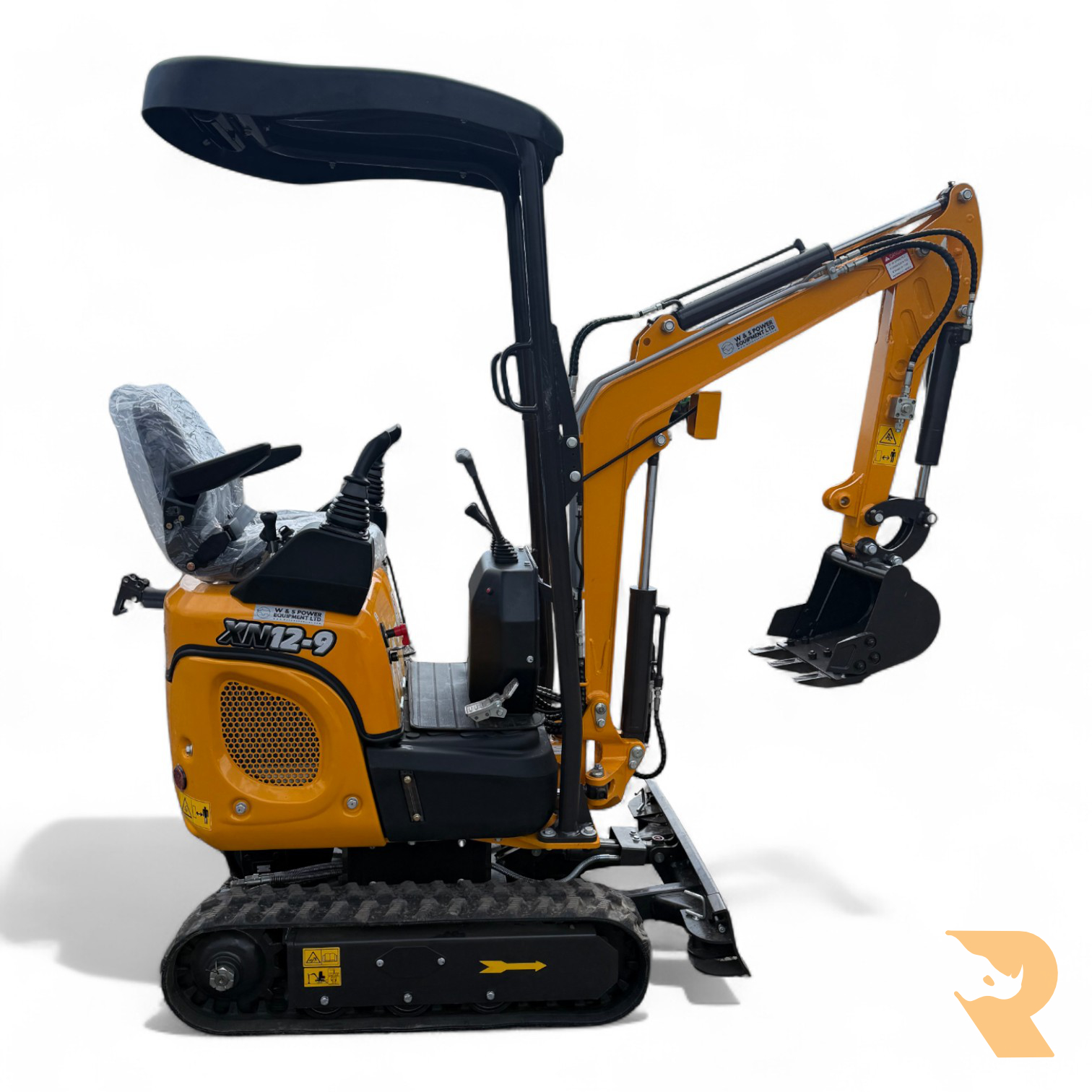

The XN12-9 is a powerful 1.2-ton mini excavator that serves as an upgrade to the XN10-8, featuring a triple-cylinder engine that enhances its power and provides a smoother ride. It is great for DIYers with frequent usage and professionals alike on medium-sized projects, including trenching, small foundation work, utility digging, driveways, stump removal, material handling and more. The XN12-9 comes equipped with retractable tracks, a swing boom, a canopy, and three buckets to meet all your needs. It is robust, able to deal with challenging conditions, and easy to maintain. We also offer a full range of spare parts and attachments.
Key details:
- Swing boom and extension tracks
- It comes with a canopy and three buckets (200mm digging, 300mm digging, and 500mm grading buckets)
- CE marked with full compliance certification (compliant with all relevant EU regulations)
- One-year manufacturer's warranty
- Three-cylinder Kubota engine or Yanmar Engine
- The machine will come in a yellow or red colour
If you live in the UK, you can collect your machine directly from us; all you need is a small trailer. Alternatively, we can deliver it for £1.50 per mile from Chester. We also deliver globally.
Check out our further technical specifications tab for more details.
Related terms: mini digger, compact excavator, xiniu
Technical Specifications
| Model | XN12 | Operating Weight | 1200kg |
|---|---|
| Digging bucket capacity | 0.025cbm |
| Bucket width | 380mm |

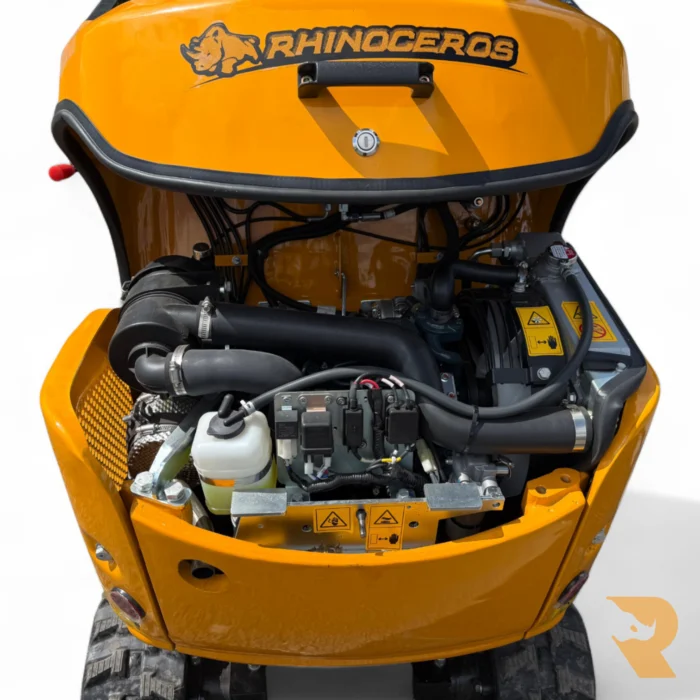

| Engine | Kubota D902 |
| Rated power | 10.8kw/2200/r/min |
| Displacement | 0.854L |
| Bore stroke | three cylinder, water cool |
| Main pump | RHINOCEROS |
| Displacement | 6.8ml/r |
| Hydraulic system pressure | 16 Mpa Nachi hydraulics |
| Swing motor | EATON |
| Traveling motor | EATON |
| Travel speed | 2km/h |
| MAIN DIMENSIONS | |
| Overall dimension (LxWxH) | 2770x896x1490 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Diesel tank capacity | 10 L |
| Hydraulic oil tank capacity | 16L |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
