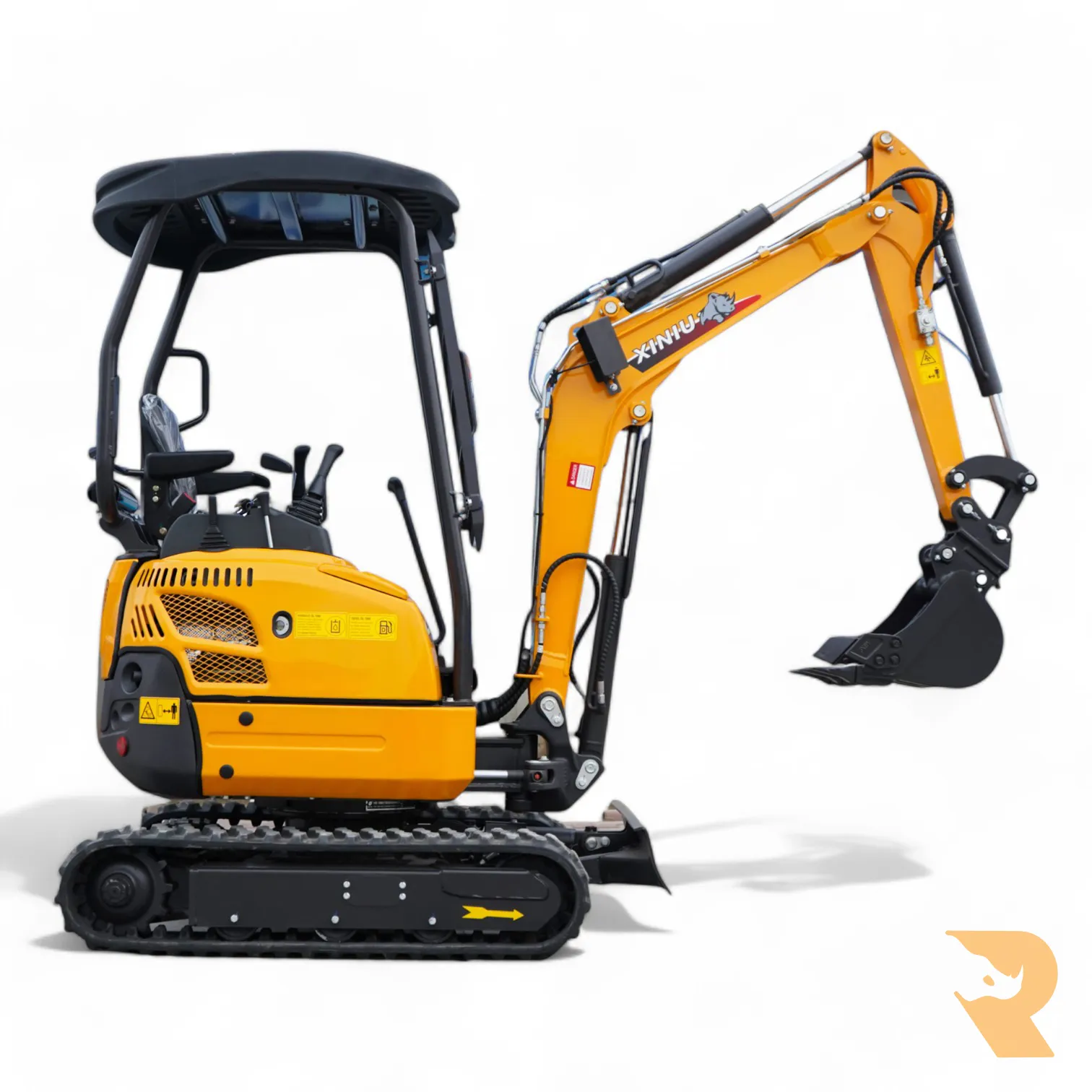

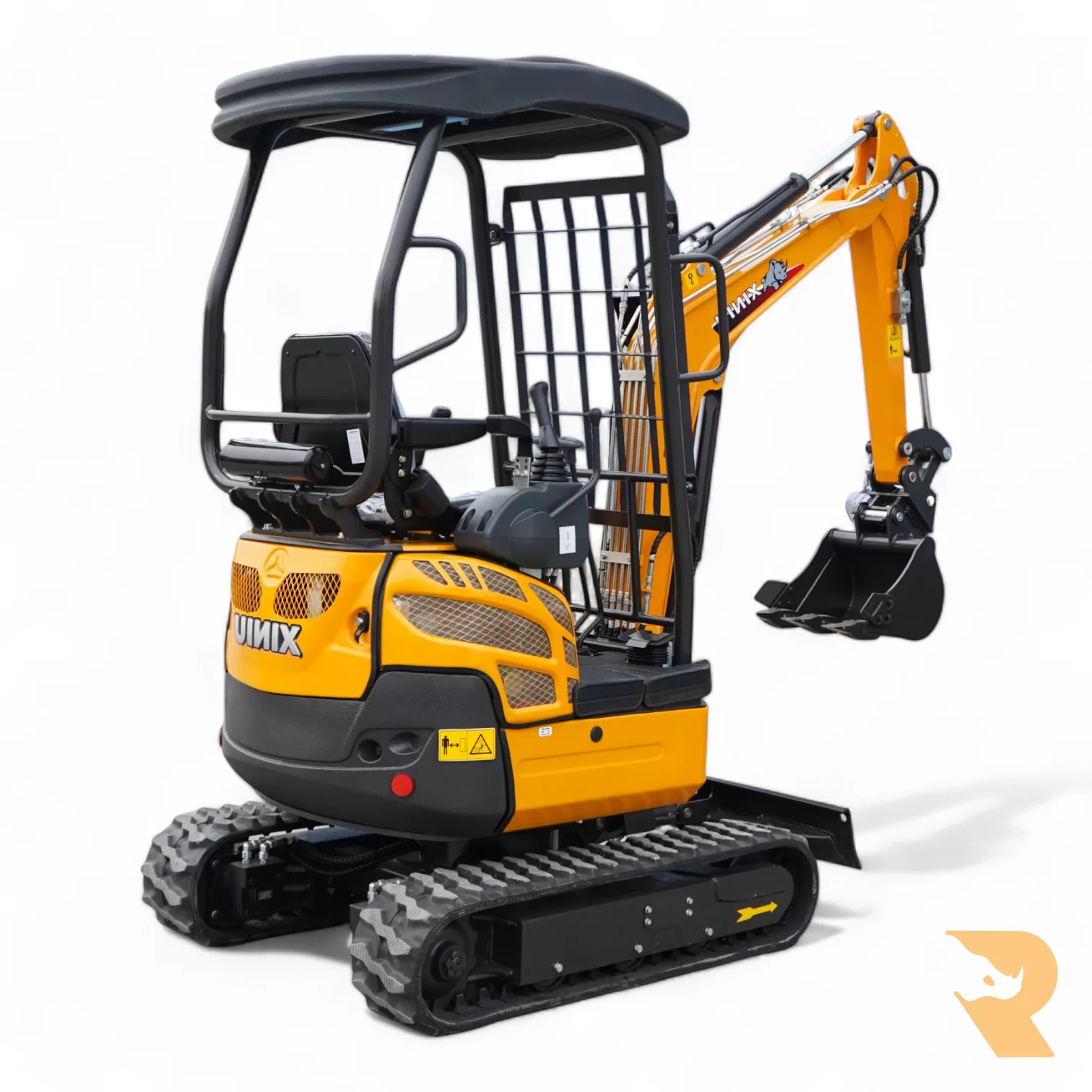

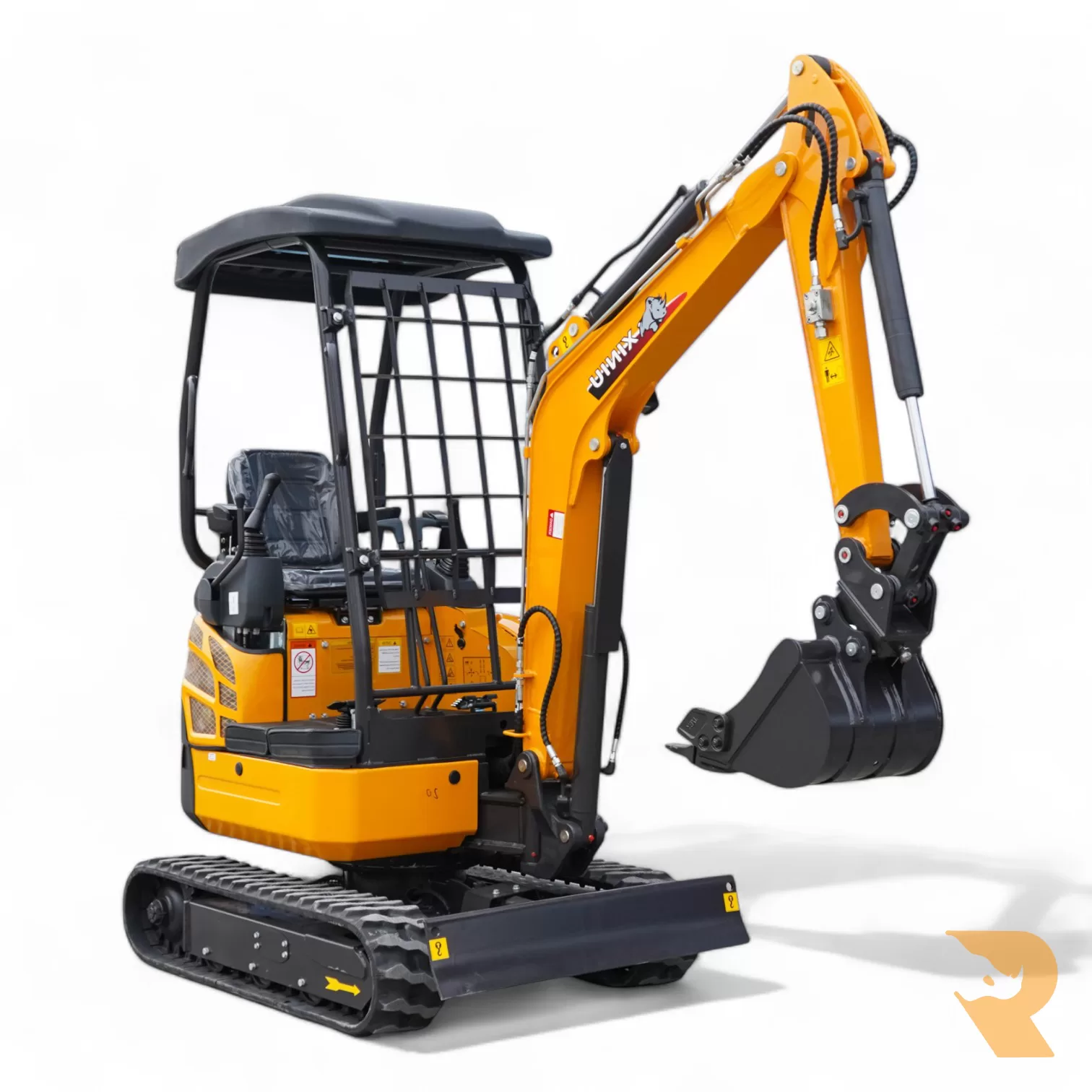

Rhinoceros XN18 Mini Excavator (Swing Boom and Extension Tracks)
£14,250.00
The Rhinoceros XN18 excavator comes with a canopy and weighs 2 Tons, it has a Japanese Yanmar or Kubota engine and as standard, with retractable tracks (variable width tracks).
Rhinoceros XN18 Mini Excavator
The Rhinoceros XN18 excavator comes with a canopy and weighs 2 Tons, it has a Japanese Yanmar or Kubota engine and as standard, with retractable tracks (variable width tracks).

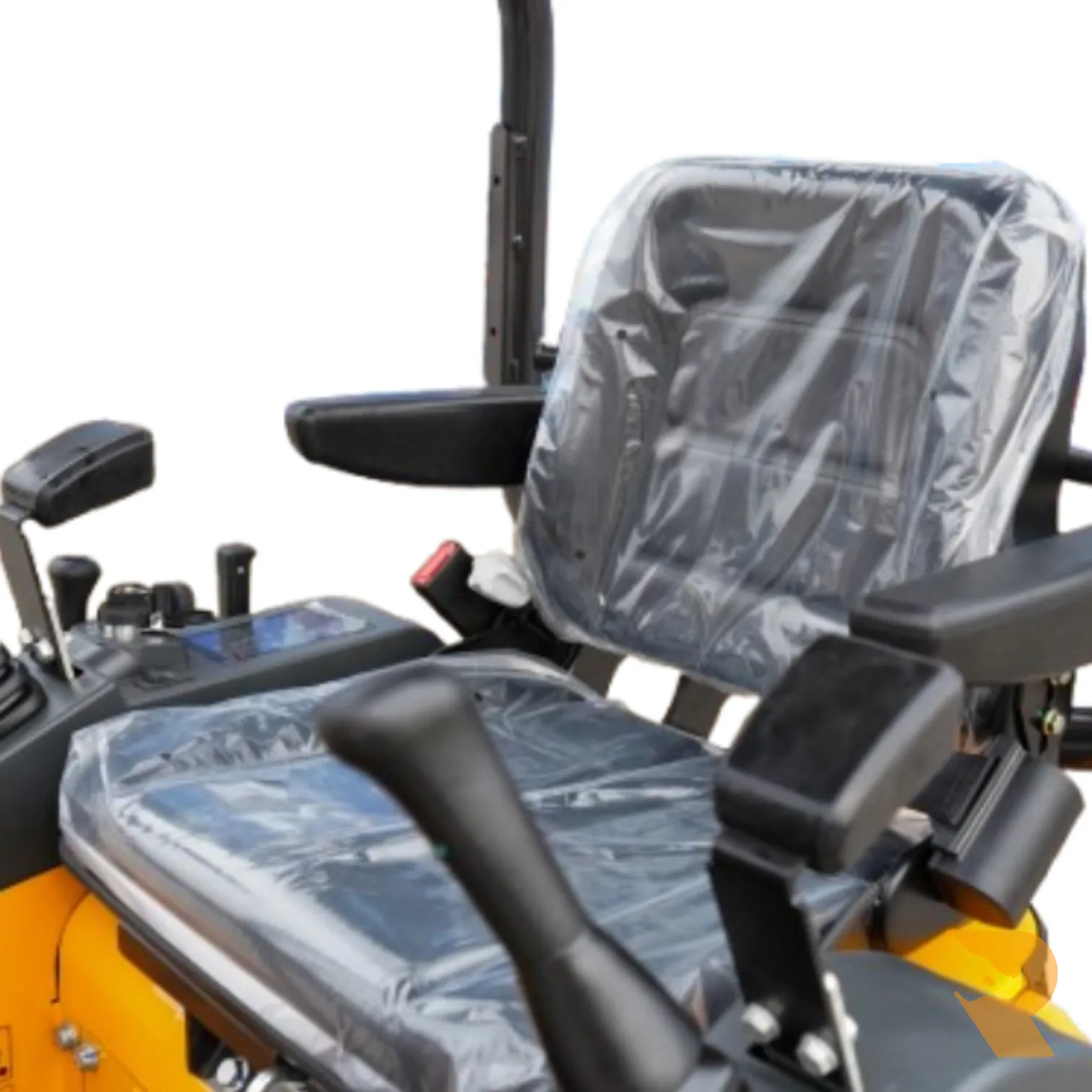

The boom is offset with joysticks that are comfort controlled for anti-fatigue and precision control. The swing motor and three hydraulic pumps use a high quality brand with an auxiliary output for use with many attachments. The hydraulic pump is a piston pump, which is a perfect match for the valve output. The dozer blade also has a variable width option so that it can be changed to match the track width setting.
Key advantages
- Japanese sourced engine.
- Fully imported hydraulic system
- Telescopic lower frame, with easy cab access
- Tracks are extendable between a range of 990mm to 1240mm
- Swing boom for working in a narrow area and alongside a wall
- Variable dozer
| Technical Specifications |
| Retractable Tracks |
| Offset Swing Boom |
| Kubota D902 Engine |
| Nachi hydraulics |
| Anti Fatigue Joysticks |
| Three Hydraulic Pumps |
| Auxiliary Hydraulic Output |
Further Technical Specifications
Rhinoceros XN18 Mini Digger Overall Dimensions
|
Overall Dimensions
|
Unit (mm) |
| Wheel Base | 1130 |
| Overall Length of Track | 1450 |
| Ground Clearance of Platform | 437 |
| Counterweight Turning Radius | 790 |
| Chassis Width | 1110 |
| Crawler Width | 230 |
| Crawler Height | 320 |
| Transportation Length | 3160 |
| Height of Seat to Ground | 1637 |
| Overall Height | 2337 |
Rhinoceros XN18 Mini Digger Operating Parameters
|
Overall Dimensions
|
Unit (mm) |
| Max Digging Radius on Ground | 3470 |
| Max Digging Radius | 3560 |
| Max Digging Depth | 2150 |
| Max Digging Height | 3275 |
| Max Unloading Height | 2310 |
| Max Vertical Digging Depth | 1740 |
| Min Turning Radius | 1440 |
| Max Digging Depth of Dozer Blade | 262 |
| Max Depth of Dozer Blade | 192 |
Rhinoceros XN18 Specifications
| MODEL | XN18 |
| Operating Weight | 1,600 kg |
| Digging Bucket Capacity | 0.048 cbm |
| Engine | Kubota D902 |
| Rated Power |
24.8/18.5kw /3600 r/min
|
| Displacement | 0.854L |
| Maximum Torque |
51.9N.m/1600 r/min
|
| Max Travel Speed (High/Low) | 3.1/1.5 km/h |
| Swing Speed | 11 r/min |
| Max Gradeability | 30° (58%) |
| Bucket Digger Force | 10.5 kN |
| Bucket Arm Force Digging | 6.5 kN |
| Theoretical Maximum Traction | 13.5 kN |
| Ground Specific Pressure | 40 kPa |
| Track Material | Rubber |
| Type Of Track Tension Device |
Butter Oil Cylinder
|
| Pump Type | Piston Pump |
| Working Pressure | 22 MPa |
| Flow Rate | 2 x 17+14 L/min |
| Hydraulic Oil Tank Capacity | 15.3 L |
| Engine Oil Capacity | 2.8 (1.3) L |
| Fuel Tank Capacity | 19 L |
