Everything You Should Know About Mini Excavator Cylinders As An Owner

What You Need To Know?

If the mini excavator were a superhero, its hydraulic cylinders would be the muscles. They’re the ones doing the heavy lifting, pushing, pulling, and stretching so your machine can do all the jaw-dropping feats it’s known for. Without them? Well, your excavator would just be a very expensive lawn ornament hanging around your garden.

In this article, we’ll break down what hydraulic cylinders are, the different types you might find in your excavator, how they work, what could go wrong, and how to choose the right one for the job.

What Exactly Is a Hydraulic Cylinder?

Think of a hydraulic cylinder (a.k.a. a linear hydraulic motor) as a very determined piston-and-rod duo living inside a metal barrel. They turn pressurised hydraulic fluid — usually oil — into straight-line force. They push in one direction with incredible strength, making them an essential part of excavators, construction machines, and even some factory robots.

In excavators, these cylinders are the reason you can dig trenches, lift concrete slabs, and operate attachments like buckets or grapples without breaking a sweat (or a vertebra).

The Physics Behind the Push

Hydraulic cylinders work thanks to Pascal’s Law — apply pressure to a fluid in a confined space, and it’ll push equally in all directions. In your excavator, a hydraulic pump pressurises oil, which then pushes against the piston, making the rod extend or retract. The result? Your bucket, grapple, or breaker moves exactly how you need it to. The movement of the piston generates the force needed to perform various functions, such as lifting, pushing, or pulling loads.

Common Cylinders Found in Mini Excavators

The cylinders in mini excavators are of different sizes depending on which part of the mini excavator they operate. If a cylinder is faulty, it’s crucial that you get the right cylinder for replacement.

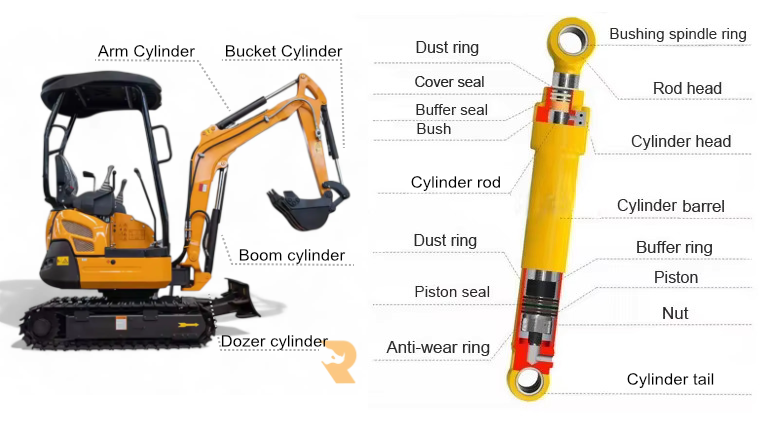

Most mini excavators will have at least four hydraulic rams, which are used to move the boom, arm, attachment/bucket and dozer blade.

Boom cylinder: These move the excavator boom up and down. In larger machines, there are often two boom cylinders; one on either side of the boom.

Arm cylinder: Also called the stick cylinder, dipper cylinder, or crowd cylinder. This moves the dipper arm forward and back, pushing the attachment closer or further away from the mini excavator.

Bucket/attachment/dump cylinder: This rotates the bucket or other attachment up and down.

Dozer cylinder: This curls the dozer at the front of the mini excavator up and down.

A mini excavator may have other cylinders including a swing cylinder, and blade cylinder.

What is a Ram?

Strictly speaking, a ram is a single-acting cylinder with a solid piston rod (common in jacks and presses). But in the excavator world, many people just say “ram” for any cylinder.

If we use the colloquial excavator definition (“ram” = any hydraulic cylinder that moves something), then, for example, a boom cylinder may be referred to as a boom ram.

If we use the strict hydraulic definition (“ram” = single-acting piston), then none of them are pure rams — they’re all double-acting cylinders, because excavators need hydraulic power both to extend and to retract the rod.

What Can Go Wrong? (And How to Fix It)

Even the strongest cylinders have bad days ─ affecting performance and productivity. Common issues include:

1. Leaks: Usually from worn seals or damaged fittings, or even contamination of the hydraulic fluid.

   Fix: Identify source of the leak and inspect damages in the cylinder. Replace seals, tighten fittings, keep everything well-lubricated.

2. Cylinder drift: cylinder slowly moves or fails to hold its position, affecting the excavator’s precision and control usually caused by internal leaks, worn-out seals, or improper cylinder alignment.

   Fix: Avoid overloading beyond its rated capacity as this causes excessive stress resulting it to bend or deform. Inspect for misalignment, and replace worn seals.

3. Overheating: could be due to excessive pressure, a malfunctioning pump, or inadequate cooling resulting to increased wear and tear, and potential damage to the hydraulic system.

   Fix: Maintain proper fluid levels, improve cooling systems (Adding fans or heat exchangers) keeping them within recommended temperature ranges, don’t overwork the machine, and inspect for signs of overheating (i.e. discoloration or warping)

4. Noise and Vibration: Could be due to trapped air or loose parts, worn-out components, or other mechanical problems. It can be disruptive to the operator and may indicate underlying issues.

   Fix: Bleed the hydraulic system to remove air bubbles, tighten or replace worn-out/misaligned components like seals or rods, and don’t forget to always perform regular inspections to prevent noise and vibrations.

Regular checks of cylinder components like rods, seals and hoses also help maximize uptime.

Sometimes a cylinder is bust and can’t be fixed. In that case, getting an appropriate replacement cylinder is required.

Choosing Replacement Hydraulic Cylinders

Its important to check the cylinder is compatible with your mini excavator system. Factors to consider include:

• Rod length: Must match the stroke length needed for the application.
• Bore diameter: Corresponds to the cylinder size required based on the excavator model.
• Pressure rating: Must match or exceed the system’s hydraulic pressure.
• Material: Typically steel for strength and durability. Options with chrome plating, chrome rods and stainless steel parts provide better corrosion resistance.
• Seals: Operating in a hot, dusty, wet setting? Pick a higher quality manufacturer with materials and seals that can withstand the environmental conditions specific to your excavator’s operation.
• Mounts: Fit existing mounting points on the excavator.

Other factors to consider:

• Attachments: Some attachments may require higher levels of force, speed, and control, necessitating different hydraulic cylinder specifications.
• Fluid Quality: dirty or cheap hydraulic oil = faster wear.

Looks for brands such as Rhinoceros Diggers that offer heavy-duty cylinders designed for the rigors of construction work in different environments.

Hydraulic cylinders are the powerhouse behind your excavator’s every move. In the world of construction, nothing beats a well-oiled muscle. Understanding their types, functions, and care needs not only keeps your machine working efficiently but also saves you from costly downtime. Choose wisely, maintain regularly, and your excavator will repay you with years of smooth, powerful operation — and far fewer “oh no” moments on the jobsite.
